Rechargeable Battery Pack 72W 132WH 12V/11000mAh 9V/14500mAh 5V/26400mAh DC Output Lithium Ion
Rechargeable Battery Pack 72W 132WH 12V/11000mAh 9V/14500mAh 5V/26400mAh DC Output Lithium Ion
SPECIFICATIONS
Brand Name: BMAD
Origin: Mainland China
Model Number: no
Nominal Capacity: 3001-3500mAh
Type: Li-Ion
Brand Name: TalentCell/YaBo
Model Number: YB12011000-USB
Battery Size: 18650
Place of Origin: Guangdong, China
Weight: 500g
Warranty: 1year
Anode Material: NCM
Battery type: 18650 battery pack
Input (DC5521 port): 12.6V/6A max.
Output 1 (DC5521 port): 12V/6A max.
Output 2 (DC5521 port): 9V 1A
Output 3 (USB port): 5V 2A
Color: Black

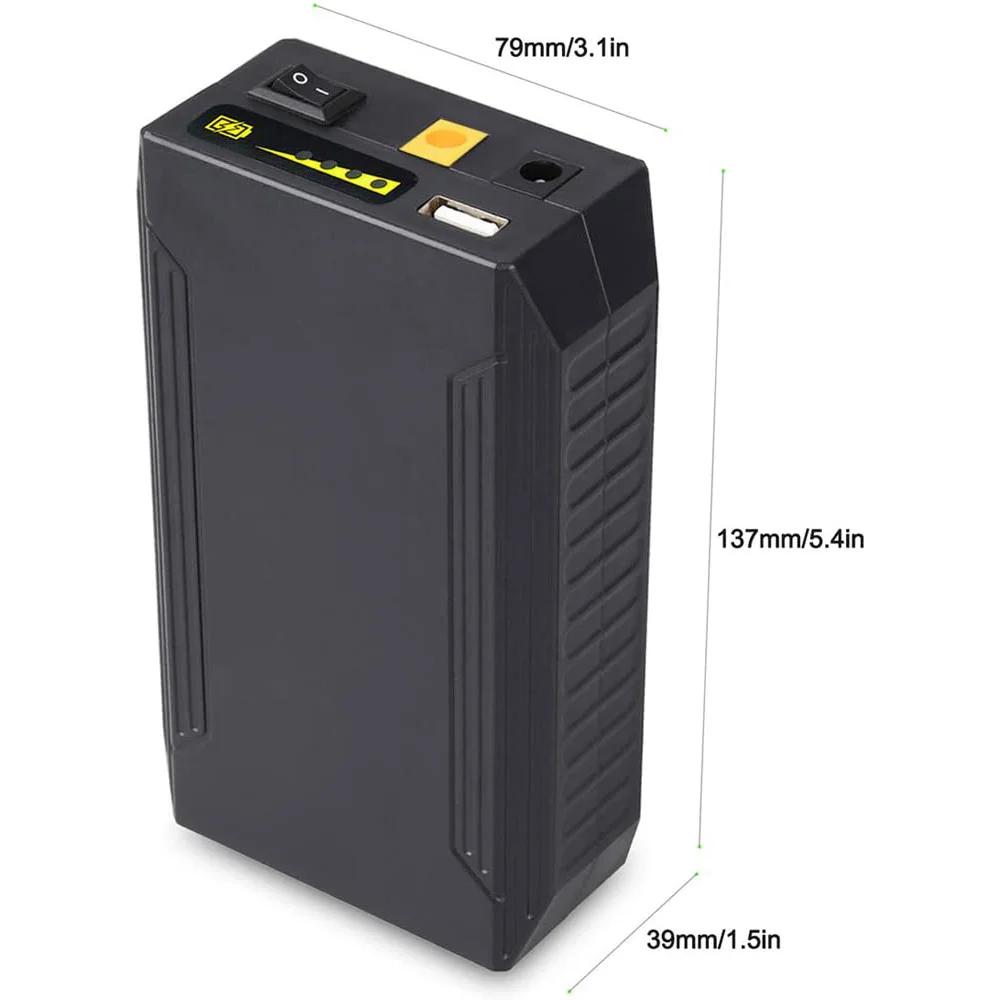

Size: 39*79*133mm
Spec. of charger: 12.6V 2A UK / US / EU / /AU plug
Cable: "Y" cable and DC5521 to DC5525
Chargeable: Yes
Certification: ISO9001,CNAS,CE,ROHS,FCC,MSDS,UN38.3,IEC,BIS,CB
model |
YB12011000-USB |
type |
Li-ion battery with PCM |
Nominal voltage |
12 volt |
Typical capacity |
11000mAh |
Input |
11.1 v |
Out-put |
12.6-9V |
Max continuous charge/discharge current |
2.5A(adjustable),12.6V/6A max. |
Charger Included |
2A charger:US plug/EU plug/UK plug |
Connectors |
5.5*2.1mm DC jack+5.5*2.1mm DC plug |
Protection |
12VPCM,over-charge/discharge protection, over-heat protection |
Recharge cycle |
More than 500 times |
LED Indicator |
Available |
ON/OFF Switch |
Available |
Key word |
12v battery with charger |
Standard Charge Time |
Around 5H |
Dimension |
39*79*133mm |
Weight(approximate) |
500g |
Operating temperature |
-20 °C to 60 °C |
Charge temperature |
-0 °C to 45 °C |
Storage temperature |
-20 °C to 45 °C |
Operating humidity |
5% to 90%,non-condensin |
Package content:
1x DC 12V 11000mAh Rechargeable Li-ion Battery.
1x DC5525 male to DC5521 male power cable.
1x DC5521 1 female to 2 male power splitter cable.
1x 12.6V/1.5A AC/DC charger for battery.
NOTES:
Do not use the power bank in places with high humidity or where it may be exposed to wet.
Do not modify or disassemble the power bank.
Do not throw the power bank into fire or water.
Do not place the power bank during charging on flammable materials such as in the bed or carpets.
Applications:
LED strip/panel/light Application:
Camera/IP Camera
Car camera recorder
Router/Switch
POS machine
Solar energy storage
Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.
Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.
Q8.How about warranty?
A:1 year warranty
Contact us for more details about Price, Packing, Shipping and Discount.
-
Battery will packed with Standard box then put into cartons.
-
We will ship the battery by express such as DHL, TNT, UPS, FEDEX etc. We can also ship by sea or air transportation for bulk large order.
-
Delivery time for production will depend on your quantity. Usually it will take 5-7 working days, the sample will be shipped out within 3 working days.
